Planet Scale Virtual Network Orchestration on Azure

Microsoft Azure’s global network is immense, connecting datacenters across 61 Azure regions and spanning more than 165,000 miles of fiber. For platform engineers, this is a unique canvas for building planet scale network architectures.

But with this immense power comes complexity. How do we orchestrate networks that meet the performance envelope of globally available applications at scale? Manually wiring hubs and regions, enforcing security policies worldwide, and ensuring resilience is neither practical nor sustainable.

The solution lies in network automation and intent-based management. At the core of this approach is the Azure Virtual Network Manager (AVNM), which provides centralized network connectivity, security and management at scale.

This guide demonstrates how to use AVNM and Infrastructure as Code (IaC) to design, automate, and operate a secure, resilient, and scalable global network illustrated through the lens of a fictitious company expanding its global footprint.

Table of Contents

• Introduction
• Architecture
• IP Address Management (IPAM)
• Orchestration
  • Dynamic Group Management
  • Connectivity Configuration
  • Security Configuration
  • Routing Configuration
• Pipeline Setup
• Summary

Prerequisites

This guide covers advanced network architecture on Microsoft Azure. Before diving in, you should have a strong understanding and experience with the following;

• Azure Networking: A solid grasp of fundamental services like Azure Virtual Networks (VNets), VNet Peering, User-Defined Routes (UDRs) and Azure DNS
• Azure Network Security : Hands-on experience with Azure Firewall and Network
• DevOps concepts like CI/CD pipelines and version control
• Platform Engineering concepts and principles

Introduction

GloboJava is a fictional company known for its coffee-based products—specialty beverages and pastries. Its mission is to deliver an exceptional coffee experience, reliably and at speed, wherever customers place an order.

Currently operating across the Americas, GloboJava is expanding into Europe, Africa, Oceania, and Southeast Asia. To enable this global presence, the Platform Engineering team must design and manage a secure, scalable, and resilient network architecture to support millions of daily transactions.

The team faces four key requirements:

• Low Latency Everywhere: Customer app experience should be the same regardless of location.
• Uncompromising Security: A zero-trust network with strict segmentation and centralized inspection of all cross-region traffic.
• Operational Resilience: A single region failure must not disrupt operations across other regions and continents.
• Velocity and Scale*: New regions must be provisioned automatically, with infrastructure defined as code.

Architecture

The initial assessment confirmed that manually peering dozens of VNets across regions would be unmanageable and error prone. Instead, the team designed an orchestrated, intent-driven architecture leveraging Azure Virtual Network Manager (AVNM)

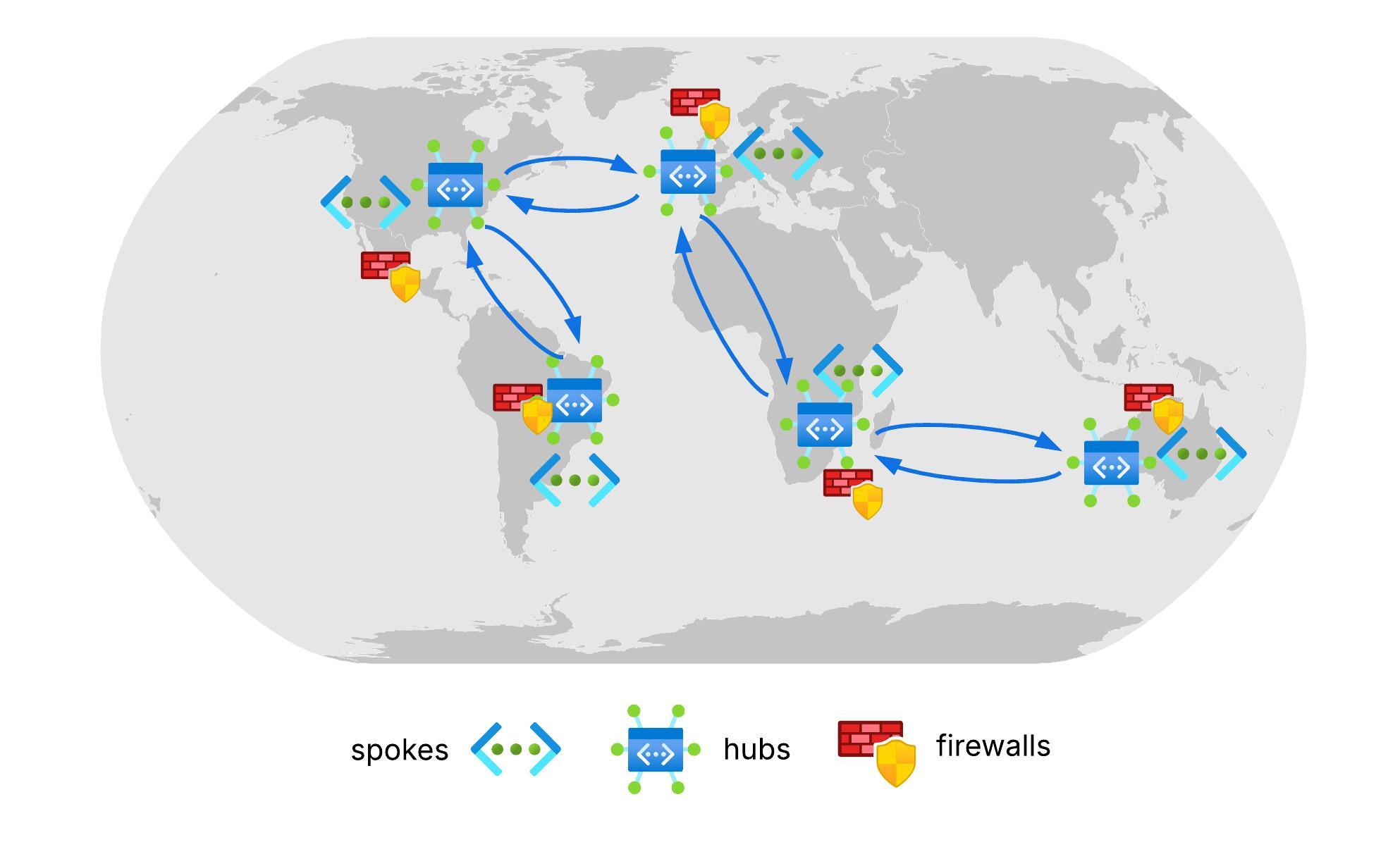

At a high level, the network design includes regional hubs as follows:

• Americas: hub-eastus, hub-westus
• Europe: hub-northeurope, hub-westeurope
• Asia Pacific: hub-southeastasia, hub-australiaeast
• Africa: hub-southafricanorth

Each hub hosts an Azure Firewall and connects to two spokes (prod and nonprod). Local traffic remains within a region for lowest latency, while hubs provide secure inter-region routing.

IP Address Management (IPAM)

One of the most overlooked yet critical aspects of designing a planet-scale network is IP Address Management (IPAM). Poor IP planning leads to overlapping ranges, routing conflicts, and painful rework when onboarding new regions. A disciplined, hierarchical scheme prevents these issues and ensures long-term scalability.

Design Principles

• Global Uniqueness: Every VNet must have a globally unique address space to avoid overlaps.
• Predictable Hierarchy: IP ranges should follow a structured pattern so engineers can instantly identify the region, environment, and role of a network from its CIDR.
• Room to Grow: Each region must have space for future spokes and services without needing a redesign.
• Separation of Concerns: Production, non-production, and shared services VNets must be clearly isolated.

Global IPAM Table

• 10.0.0.0/8 reserved for the entire enterprise Azure estate.
• Each Azure region gets a /12 slice providing over a million IPs per region.
• Each hub VNet uses a /16 block carved from the regional /12.
• Each spoke VNet (prod or nonprod) uses a /20 block within the region.
• Each VNet is internally segmented into /24s for workloads, gateways, and firewalls.

| Region            | Regional /12  | Hub VNet /16   | Prod Spoke /20   | Nonprod Spoke /20 |
|-------------------|---------------|----------------|------------------|-------------------|
| eastus            | 10.0.0.0/12   | 10.0.0.0/16    | 10.0.16.0/20     | 10.0.32.0/20      |
| westus            | 10.16.0.0/12  | 10.16.0.0/16   | 10.16.16.0/20    | 10.16.32.0/20     |
| northeurope       | 10.32.0.0/12  | 10.32.0.0/16   | 10.32.16.0/20    | 10.32.32.0/20     |
| westeurope        | 10.48.0.0/12  | 10.48.0.0/16   | 10.48.16.0/20    | 10.48.32.0/20     |
| southeastasia     | 10.64.0.0/12  | 10.64.0.0/16   | 10.64.16.0/20    | 10.64.32.0/20     |
| australiaeast     | 10.80.0.0/12  | 10.80.0.0/16   | 10.80.16.0/20    | 10.80.32.0/20     |
| southafricanorth  | 10.96.0.0/12  | 10.96.0.0/16   | 10.96.16.0/20    | 10.96.32.0/20     |

Orchestration

Managing peering, security, and routing across 8 hubs and 16+ spokes manually would quickly spiral into complexity. The solution: Azure Virtual Network Manager (AVNM) as the global management plane.

• Dynamic Group Management:

AVNM supports dynamic network groups based on tags. For example:

• Tag hubs with network_role = hub
• Tag production spokes with env = prod
• Tag non-production spokes with env = nonprod

Groups then form automatically:

• global-hubs → network_role = hub
• all-prod-spokes → env = prod
• all-nonprod-spokes → env = nonprod

When a new spoke is tagged env=prod, AVNM automatically onboards it removing manual intervention and ensuring consistency.

• Connectivity Configuration:

AVNM applies a Mesh Connectivity Configuration across the global-hubs group. This establishes VNet peering automatically, ensuring every hub is fully connected without manual setup.

Example traffic flow:

• spoke-prod-eastus → hub-eastus → hub-westeurope → spoke-prod-westeurope

• Security Admin Configuration

AVNM enforces intent-based security rules globally, creating a protective layer above VM level NSGs. These guardrails prevent misconfigurations, such as accidental traffic between prod and nonprod, ensuring uniform compliance across continents.

• Routing and DNS

A single global Firewall Policy is attached to all regional firewalls. Changes propagate worldwide in minutes, ensuring consistent enforcement.

A global Azure Private DNS Zone (e.g., globojava.com) links to all VNets. Developers can use intuitive service names like database.westeurope.globojava.com, with DNS resolving seamlessly to the correct regional private IP.

Pipeline Setup

To make the network orchestration repeatable, reliable, and scalable, GloboJava uses Argo Workflows running on AKS to automate deployments. The workflows are designed around GitOps principles: infrastructure changes are version-controlled in Git, and pipelines reconcile desired state with actual Azure resources. (See my Platform Engineering with Kubernetes here Part 1 and Part 1)

Two separate pipelines provide the right balance between safety and speed:

Infrastructure Deployment Pipeline: This triggers on any push to main and impacts resources such as VNets, AVNM groups, hub-and-spoke definitions, and CIDR changes

Firewall Policy Pipeline:

Handles frequent firewall rule updates. This pipeline is designed to be fast-moving since security rules evolve frequently. Global consistency is guaranteed because all firewalls inherit from the same AVNM-managed policy.

Summary

In the past, managing a network of this scale meant battling complexity and risk. Today, with AVNM and declarative IaC, orchestration is not only possible but practical. For GloboJava, this means focusing on coffee not network plumbing. Their global network now automatically connects, secures, and scales across regions, ensuring customers everywhere experience the same fast, reliable service.

This is the promise of modern cloud networking: where global complexity is tamed by intent-based policies and declarative code.
